PC6100 - PVD Ion plus-Tech™
provides long tool life and stability

In cast iron machining, the formation of short, broken chips results in a lower load on the rake faceof the insert, leading to slower wear progression. However, the relief surface, which comes into directcontact with the workpiece, experiences longer friction time and therefore wears out relatively quickly. Especially, nodular graphite cast iron, compared to gray cast iron, has high hardness and high toughness characteristics. During machining, it forms built-up edges and adhesion on the surface of the insert, causing uneven chipping. Additionally, to remove the dust generated during machining, wet machinings mainly used. The cutting fluid rapidly cools the heated insert, repeatedly subjecting the cutting edgesurface to significant thermal shock, which causes thermal cracks and coating delamination on the cuttingedge.

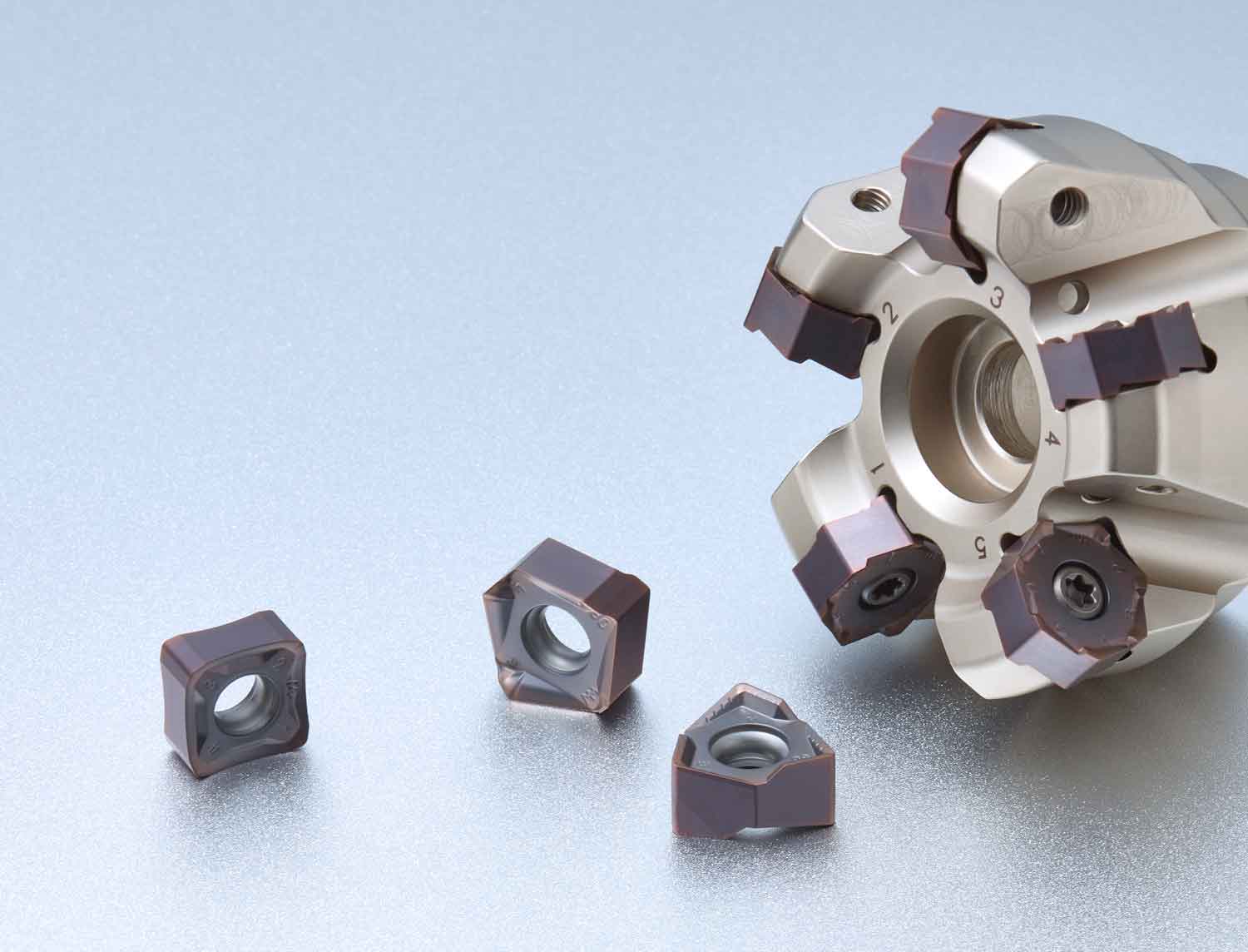

KORLOY launched PC6100, a grade for cast iron milling that can enhance productivity.

The PC6100 applies a new coating technology called Ion Plus-Tech™, which suppresses layer delaminationand thermal crack formation, providing excellent tool life and reliability. Additionally, by using a substrateoptimized for cast iron machining, it offers superior wear resistance and impact resistance.

Through this, PC6100 demonstrates excellent performance in cast iron machining under variousconditions, and particularly in ductile cast iron machining, you will experience superior tool life andmachining reliability.
