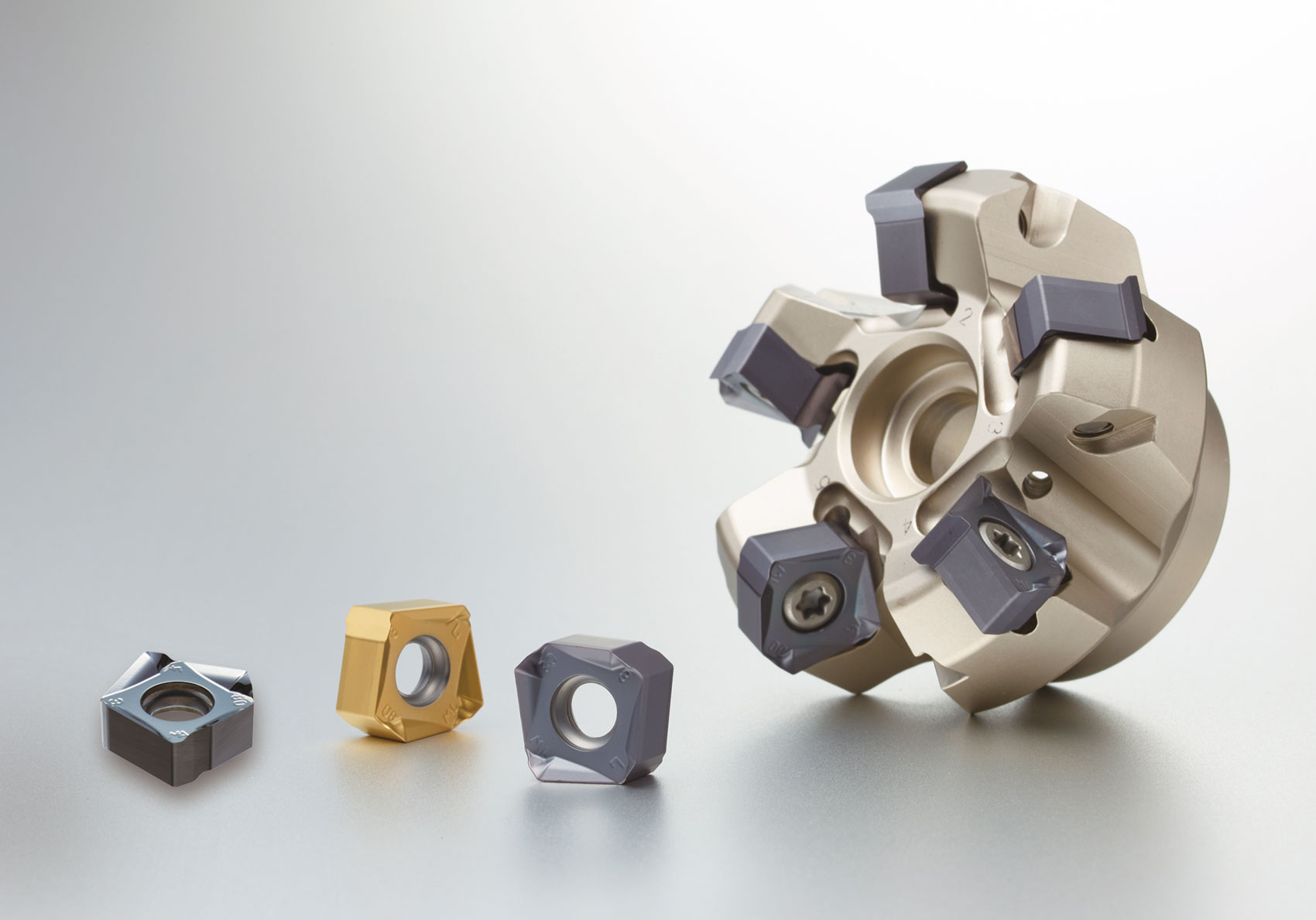

RM8-X High helix face milling tool
with 8-cornered double-side inserts

KORLOY launched face milling tool, RM8-X minimizing cutting load and enhancing stability in machining.

RM8-X with right-handed high helix cutting edge can cut smoothly in high depth of cut machining and its optimal minor cutting edge ensures good surface finish. Double reverse positive shaped relief surface prevents notch wear due to work hardening layer and the variable chip breaker is implemented for good surface finish and strong cutting edge.

To minimize welding with this strong cutting edge, high helix cutting edge and sharp chip breaker is adopted so it could realize high cutting performance and stable machining. In addition, RM8-X achieved the cost effectiveness with the insert’s double side shape ensures maximum 8 corners.

RM8-X enhances longer tool life by preventing fracture of cutting edge and increasing wear resistance with those figural features above and customized grade selection per the workpiece material.

Download:

 TechNews RM8-X english, PDF file, 2.4 MB
